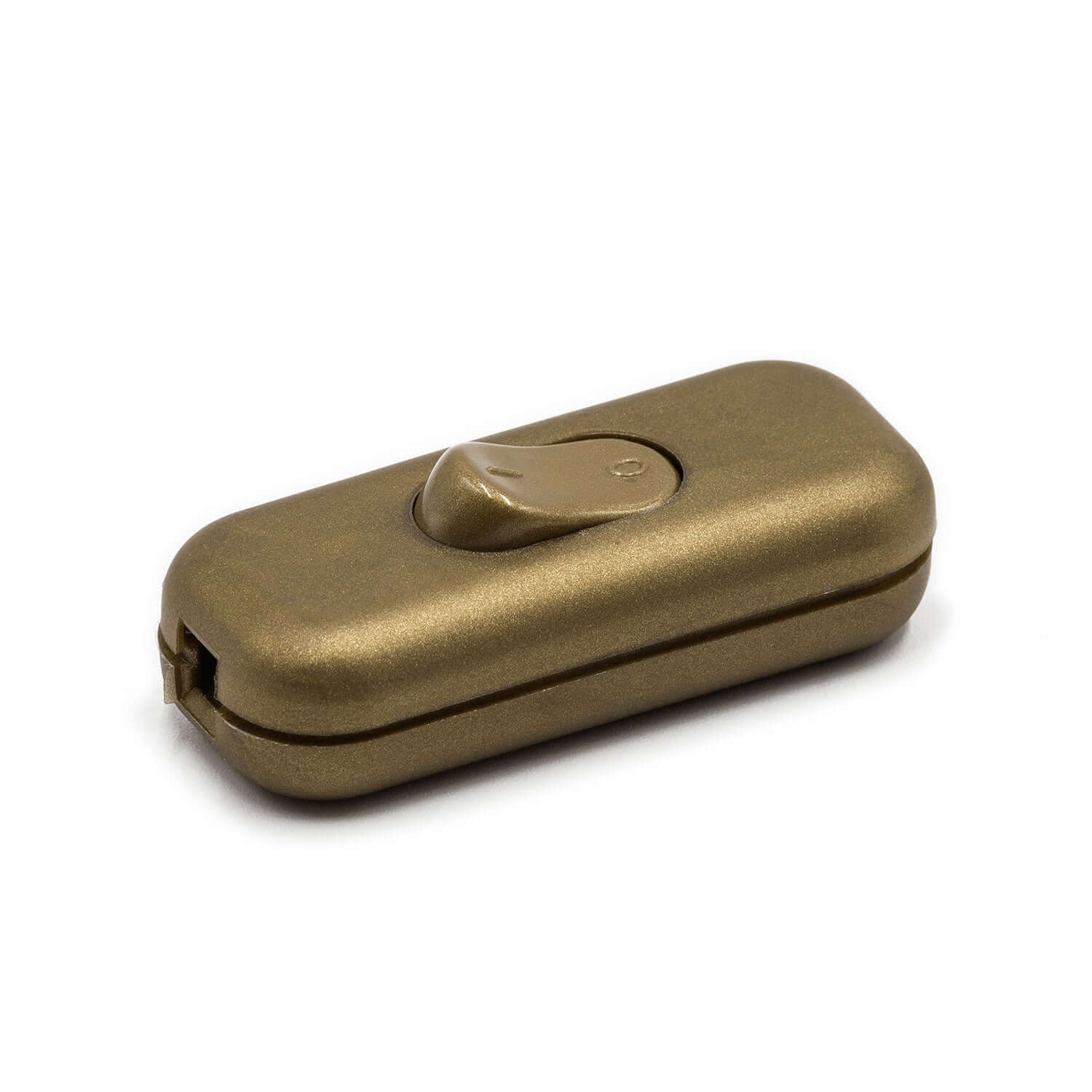

Unipolar in-line switch with earth terminal - Gold
A single-pole in-line switch in a gold finish, equipped with an earth terminal, designed to add a sophisticated detail to wiring. The precious shade visually enriches the project, turning even a technical element into an elegant decorative accent.
Technical specifications:
Rated voltage: 250V
Resistive load: 2A
Inductive load: 1A
Lamp load: 1A
Terminals: screw type
Use: for wiring of class II lighting fixtures with H03VVH2-F, 2x0.75mm² cables and H03VV-F, 2x0.75mm² and 3x0.75mm² cables
Dimensions: 60 x 25 mm - H 15 mm
Warnings: before carrying out any work, switch off the power using the main switch.
A single-pole in-line switch in a gold finish, equipped with an earth terminal, designed to add a sophisticated detail to wiring. The precious shade visually enriches the project, turning even a technical element into an elegant decorative accent.
Technical specifications:
Rated voltage: 250V
Resistive load: 2A
Inductive load: 1A
Lamp load: 1A
Terminals: screw type
Use: for wiring of class II lighting fixtures with H03VVH2-F, 2x0.75mm² cables and H03VV-F, 2x0.75mm² and 3x0.75mm² cables
Dimensions: 60 x 25 mm - H 15 mm
Warnings: before carrying out any work, switch off the power using the main switch.
Description
A single-pole in-line switch in a gold finish, equipped with an earth terminal, designed to add a sophisticated detail to wiring. The precious shade visually enriches the project, turning even a technical element into an elegant decorative accent.
Technical specifications:
Rated voltage: 250V
Resistive load: 2A
Inductive load: 1A
Lamp load: 1A
Terminals: screw type
Use: for wiring of class II lighting fixtures with H03VVH2-F, 2x0.75mm² cables and H03VV-F, 2x0.75mm² and 3x0.75mm² cables
Dimensions: 60 x 25 mm - H 15 mm
Warnings: before carrying out any work, switch off the power using the main switch.
