WAGO connection kit compatible with 3x cable for mini ceiling rose with 1 hole and switch

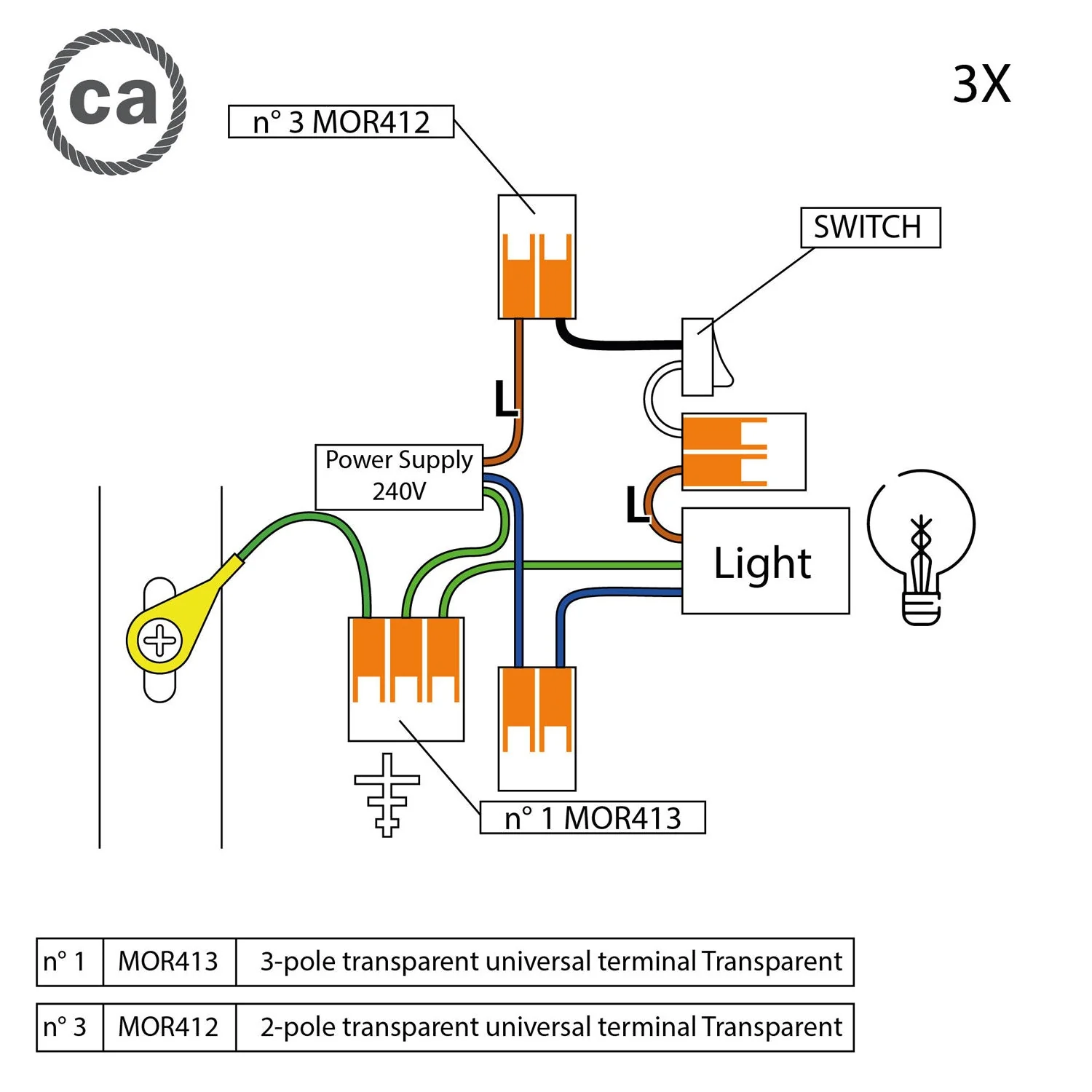

Accessory kit for wiring the mini ceiling rose with switch. The kit includes three transparent universal 2-way connectors and one universal 3-way connector.
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for solid or flexible cables
3 connectors - Number of inputs: 2
1 connector - Number of inputs: 3
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85° C
Accessory kit for wiring the mini ceiling rose with switch. The kit includes three transparent universal 2-way connectors and one universal 3-way connector.
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for solid or flexible cables
3 connectors - Number of inputs: 2
1 connector - Number of inputs: 3
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85° C
Original: $6.66
-65%$6.66
$2.33Description
Accessory kit for wiring the mini ceiling rose with switch. The kit includes three transparent universal 2-way connectors and one universal 3-way connector.
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for solid or flexible cables
3 connectors - Number of inputs: 2
1 connector - Number of inputs: 3
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85° C
