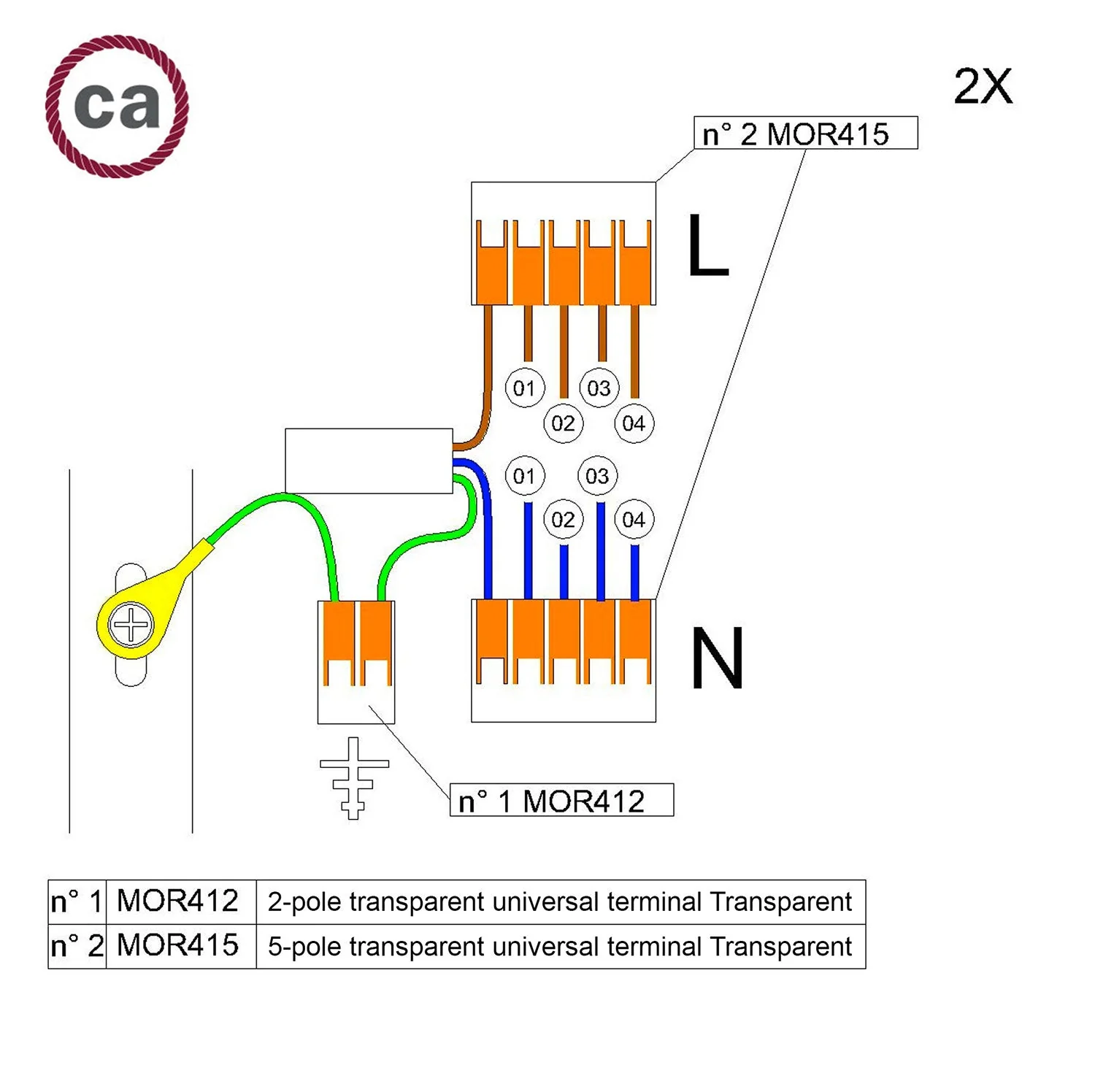

WAGO connection kit compatible with 2x cable for 4-hole ceiling rose

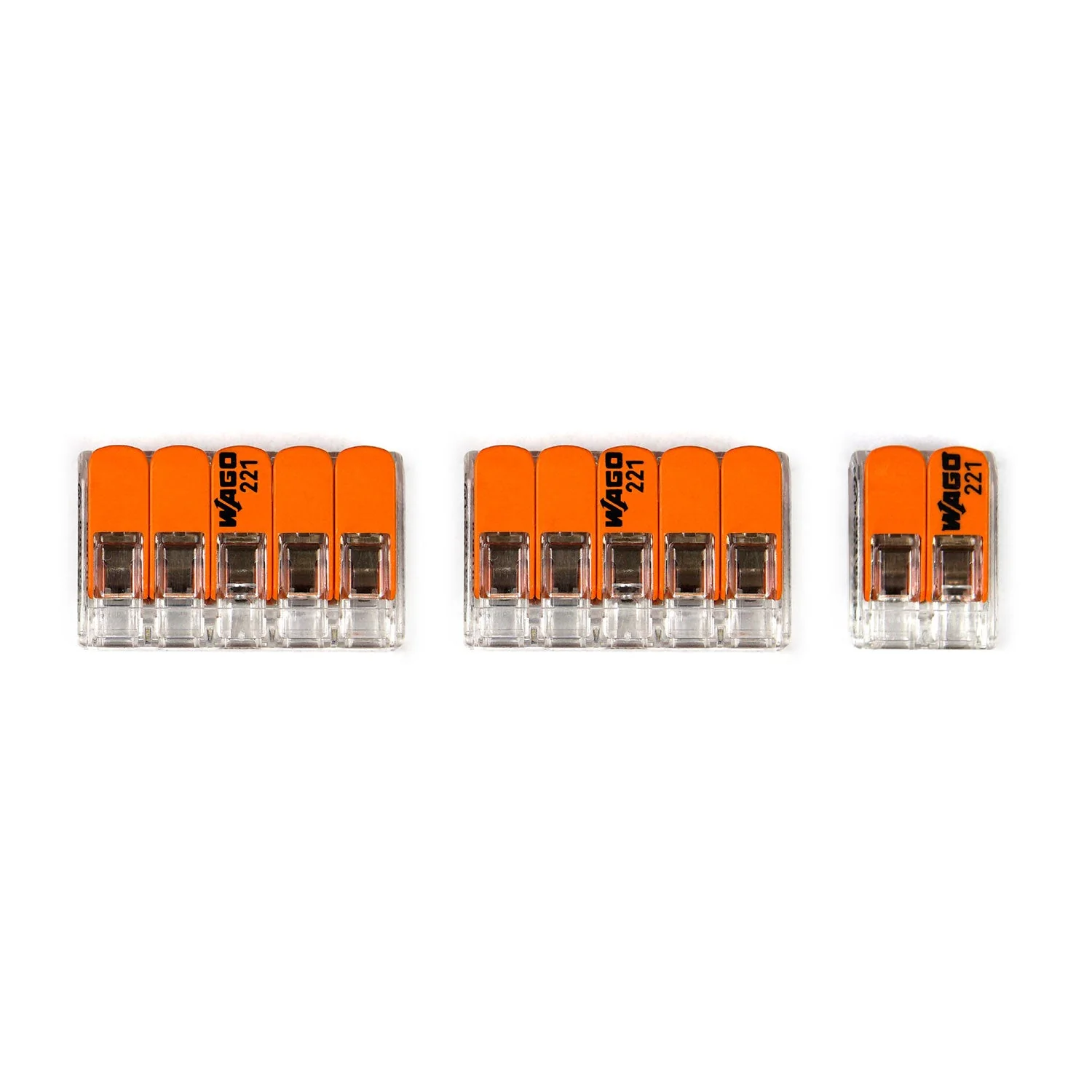

Kit of accessories for wiring ceiling rose with 4 holes. The kit includes two universal transparent 5-way connectors and one universal transparent 2-way connector.
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for solid or flexible cables 2 connectors - Number of inputs: 5 1 connector - Number of inputs: 2 Nominal voltage: 450 V Nominal current: 24 A Stripping length: 9mm (+1 mm) Maximum ambient temperature according to EN 60998: 85° C
Kit of accessories for wiring ceiling rose with 4 holes. The kit includes two universal transparent 5-way connectors and one universal transparent 2-way connector.
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for solid or flexible cables 2 connectors - Number of inputs: 5 1 connector - Number of inputs: 2 Nominal voltage: 450 V Nominal current: 24 A Stripping length: 9mm (+1 mm) Maximum ambient temperature according to EN 60998: 85° C
Description
Kit of accessories for wiring ceiling rose with 4 holes. The kit includes two universal transparent 5-way connectors and one universal transparent 2-way connector.
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for solid or flexible cables 2 connectors - Number of inputs: 5 1 connector - Number of inputs: 2 Nominal voltage: 450 V Nominal current: 24 A Stripping length: 9mm (+1 mm) Maximum ambient temperature according to EN 60998: 85° C
